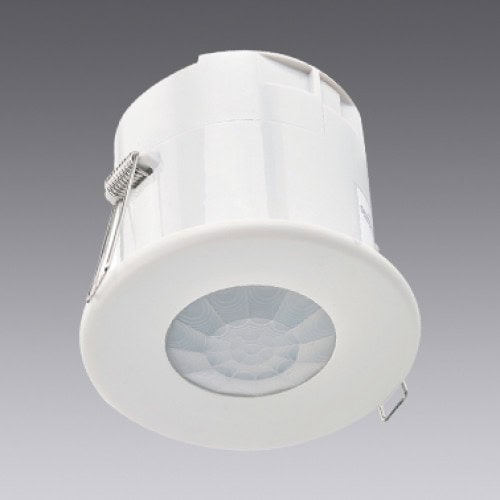

Compact Flush Mount PIR – Remote programming
R0,00
| CODE | TIME DELAY | DETECTION PATTERN | TRIM |
| EBDSPIR | 10 sec – 99 min | H: 2.8m – Ø 7m | White |
| Material | Flame retardant ABS and Polycarbonate/ABS casing |
| Features | This self-contained, pluggable, compact PIR detectors provide automatic control for lighting, heating and ventilation loads The PIR sensor can be mounted either flush into a ceiling tile or using a surface mounting box and can be mounted in a narrow ceiling void The optional infrared remote handset allows the user to override the set-up on some models |
| Options & Accessories | Available control methods: PRM Switching, DALI / DSI Dimming, Analogue Dimming and KNX PRM, DD and AD versions functionality is fully programmable using either the UHS5 or UNLCDHS handsets Available options include: 2CH – 2 channel, 2CH LV – 2channel low voltage, LT30 – low temperature, VFC – volt-free contact, VFC NC – normally closed, LV – low voltage, VFC LV – volt free contact low voltage, VFC LV NC – volt-free low-voltage normally closed |
| Load Rating | Incandescent = 10A Fluorescent = 10A Compact Fluorescent = 10A LED = 10A Resistive Heaters = 10A |
| Voltage | 220-240V |
| Mounting | Recessed or Surface (with surface mounting box) |
