Technical Information and Symbol Descriptions

Adjustable in Degrees

This fixture is adjustable up to 90°, providing flexible beam positioning to suit varying lighting requirements.

Anti-Glare Hood

An anti-glare hood minimizes direct light exposure, improving visual comfort and reducing harsh brightness.

Barn Doors

Integrated barn doors allow manual shaping and directional control of the light beam for focused illumination.

CE Compliance

CE marking is a mandatory conformity marking for certain products sold within the European Economic Area.

Class 1 Protection

Luminaires are electrically insulated and provided with an earth connection. Exposed metal that could become live in the event of basic insulation failure, is protected by earthing.

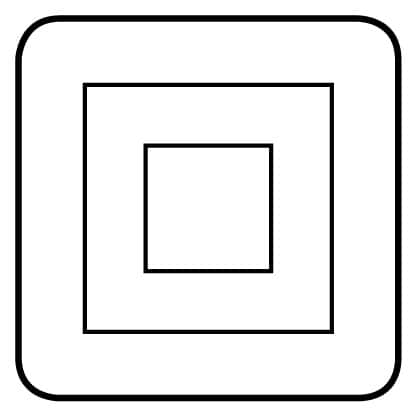

Class 2 Protection

Class 2 protection indicates double insulation, eliminating the need for an earth connection and enhancing electrical safety.

Class 3 Protection

Protection class 3, fixture delivered without transformer. Use with electronic transformers only.

Cross Anti-Glare Louvre

A cross anti-glare louvre reduces visual discomfort by controlling light spill and limiting direct glare.

Fire Rated

This fitting is fire rated to maintain the integrity of the ceiling in the event of a fire.

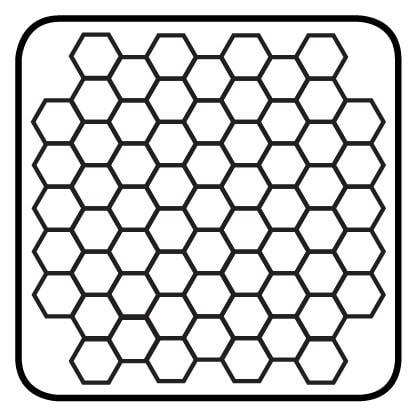

Honeycomb Anti-Glare Diffuser

A honeycomb anti-glare diffuser controls beam spread and reduces glare while maintaining light output efficiency.

IES Files

IES are luminaire, data files used by professional light planning software for indoor and outdoor lighting. It stores lighting parameters for a luminaire, which include the number of lamps, the light intensity, the light distribution curve, and the size of the luminaire.

Linea Waranty

Indicates x years warranty:
Extension to 5-year warrantee available at additional cost. Standard Terms & Conditions apply.

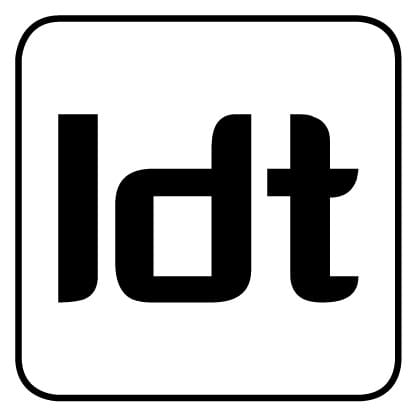

LDT Files

LDT are luminaire, data files used by professional light planning software for indoor and outdoor lighting. It stores lighting parameters for a luminaire, which include the number of lamps, the light intensity, the light distribution curve, and the size of the luminaire.

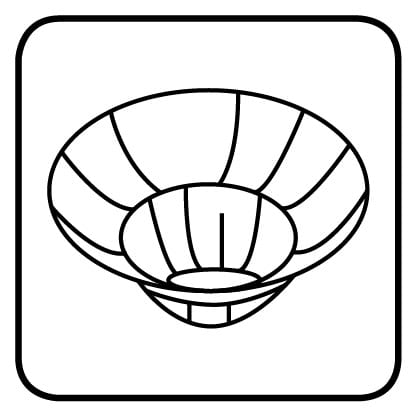

Mirror Reflector

6% higher efficiency, 15% higher Central illumination, no electroplating pollution during production

Normally Flammable

Luminaires are suitable for direct mounting on normally flammable surfaces.

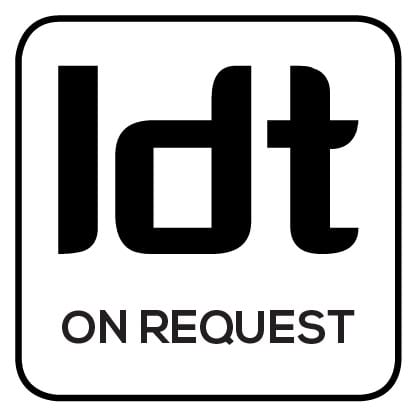

Photometric Data Available on Request

Detailed photometric data is available on request to assist with accurate lighting calculations and planning.

RoHS Restrictions

RoHS directive aims to restrict certain dangerous substances commonly used in electronic and electronic equipment.

Rotation Angle in Degrees

The luminaire offers a rotation angle of up to 360°, allowing directional control of light across the horizontal axis.

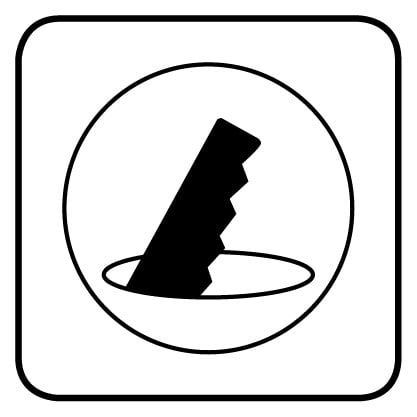

Round Cut-Out

Designed for a round cut-out, allowing for a clean, accurate and secure ceiling installation.

Square Cut-Out

Designed for a square cut-out, ensuring a clean and precise installation finish.

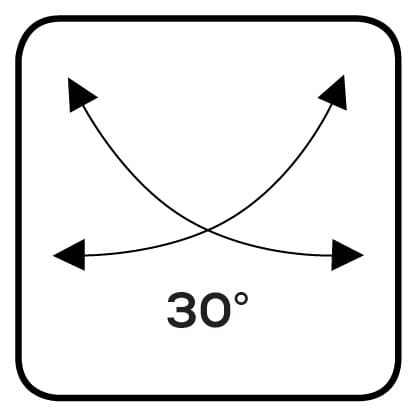

Tiltable in Degrees

The fitting can be tilted up to 30°, enabling precise vertical beam adjustment.

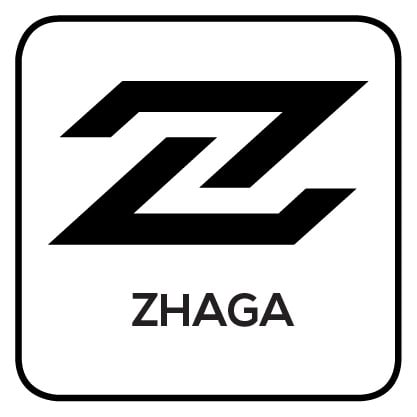

Zhaga Specifications

To enable interchangeability of LED light sources, the Zhaga consortium has created several interface specifications for LED light engines covering different general lighting applications. LED modules with a central light emission and its associated electronic control gear.
